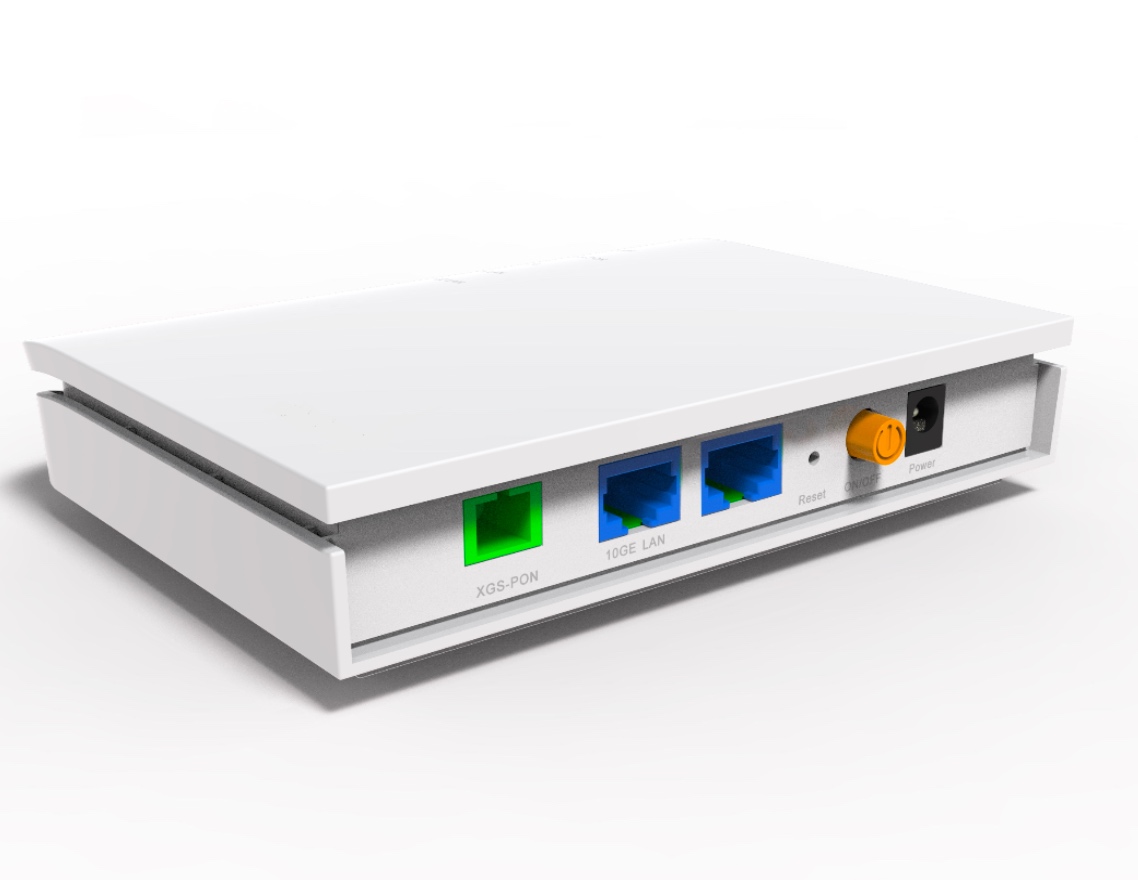

HY-D20 Series XGSPON ONT, the best idea for 10G FTTH residential applications
HY-D20 Series ONTs provide customers with one 10GE Ethernet port and one 2.5G Ethernet port. The 2.5GE port can be downgraded to 1GE port to reduce cost. Optionally, HY-D20 can also support IEEE1588v2, Y.1731 and Sync-E for mobile backhaul application. The hardware is Layer-3 capable.
Highlights
❖ ITU-T G.9807.1 XGSPON SFF/BoB Uplink
❖ 1x 100/1000/2.5G/5G/10GBASE-T IEEE 802.3ab/bz/an Ethernet RJ45 ports (Optional)
❖ 1x 10/100/1000/2.5GBASE-T IEEE 802.3ab/bz Ethernet RJ45 ports
❖ Optionally supports IEEE1588v2, Y.1731 and Sync-E
❖ Wall adaptor
❖ 0 to 40°C operating temperature
◼ Specifications
HY Solutions Model
HY-D20 Series
ONT Type
XGS PON SFU
Main SoC
Intel PRX321/PRX120
Uplink
XGSPON (Alternatively 10GEPON and XGPON1)
Downlinks
1x 10GE, 1x 2.5GE (or 1x GE)
Operating Temperature
0 to 40°C
Storage Temperature
-40 to 85°C
Installation
Desktop
Dimensions
145X110X30mm
Net Weight
220g
Regulatory (Agency)
ETL (ETA Feb.2020)
UL 62368-1:2014 Ed. 2
CSA C22.2#62368-1:2014 Ed. 2
FCC (ETA Feb.2020)
FCC Part 15 Subpart B (Shenzhen STS)
CE (ETA Feb.2020)
EMC (Shenzhen STS)
Safety (Shenzhen STS)
CB (ETA Feb.2020)
IEC 62368-1:2014 Ed. 2
PON Interface
ITU-T G.9807.1 SFF or BoB
Connector
SC/APC
Data Rate
Symmetrical Tx: 9.95328Gbps; Rx: 9.95328Gbps
Standard Compliance
ITU-T G.9807.1
Pout(Optical TransmitterPower)
4dBm~9dBm
Psens(Optical Sensitivity)
-28dBm~-8dBm
Ethernet Interface
RJ45 connectors
Standard Compliance
IEEE 802.3, 802.3u, 802.3ab
Link
Half-duplex and full-duplex operations; 10/100/1000 BaseT auto-negotiation and manual configuration;MDI/MDIX auto detection
MAC
RJ45 connectors IEEE802.3, 802.3u, 802.3ab
Ethernet frame filtering based on port, SA/DA IEEE802.3as, Max MTU size 2000bytes
MAC address limiting
VLAN
IEEE 802.1d bridging
Ingress/egress IEEE 802.1p tagging, replacement, andstriping
IEEE 802.1ad Double
tagging
Traffic class forwarding to GEMPort and TCONT
QoS
QoS based on 802.1p and 802.1q
802.1p marking based on DSCP
Multicast
