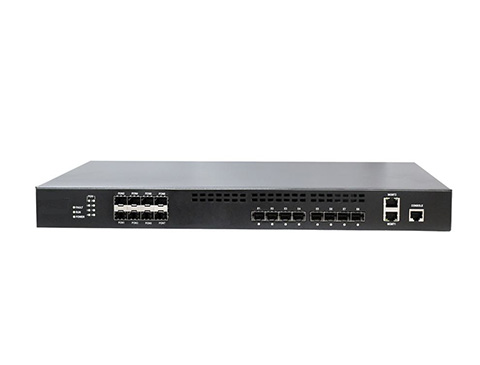

High Performance 8ports GPON OLT, 8xGE or 2*10G SFP+ uplink

OP3608 is a small capacity and enhancement mode cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of Telecom level GPON, possessing super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode.OP3608 can be used via CLI and SNMP network management system so as to provide users with the perfect solution.

OP3608 provides 8 downlink GPON port, 8 *GE combo port or 2* 10G SFP+ port. Single PON port can manage 128 ONUs, one pcs OP3608 max to 1024 ONUs. The height is only 1U for easy installation and space saving. OP3608 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.FTTH network.

Item	OP3608
Switching Capacity	40Gbps
Forwarding Capacity(Ipv4/Ipv6)	104MPPS
Service Port	8*PON port, 8*GE SFP, or 2*10GE SFP+ port
Redundancy Design	Dual power supply Support AC input, double DC input and AC+DC input
Power Supply	AC: input 90～264V 47/63Hz; DC: input -36V～-72V;
Power Consumption	Typical: 48W; Maximum: 72W
Dimensions (Width x Depth x Height)	440mm×44mm×340mm
Weight (Full-Loaded)	≤3kg
Environmental Requirements	Working temperature: -5°C～55°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing

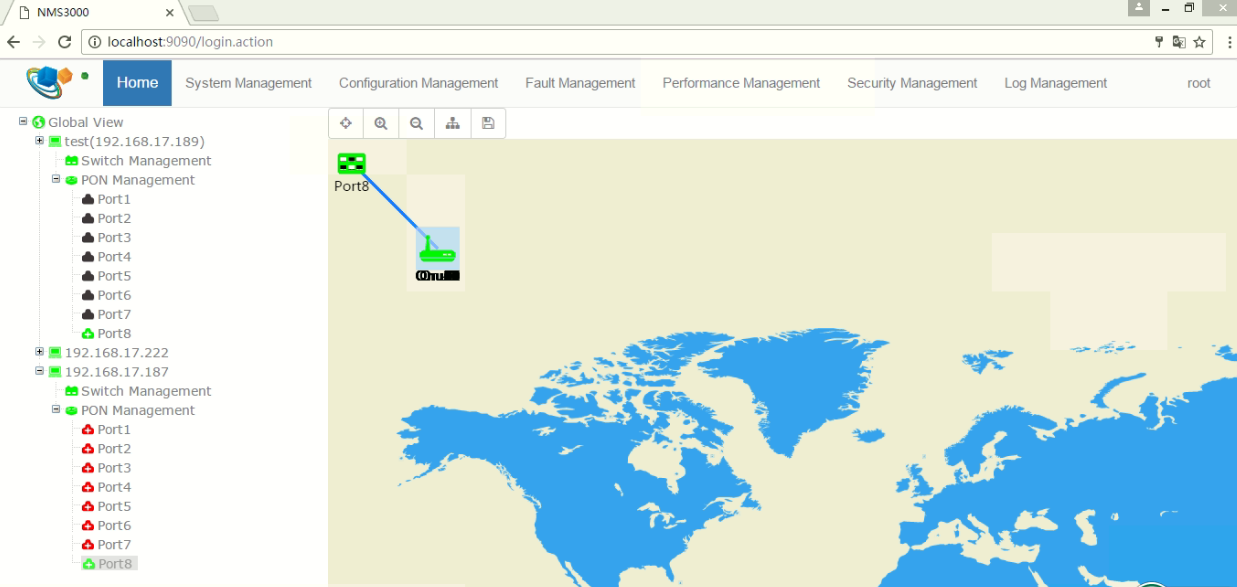

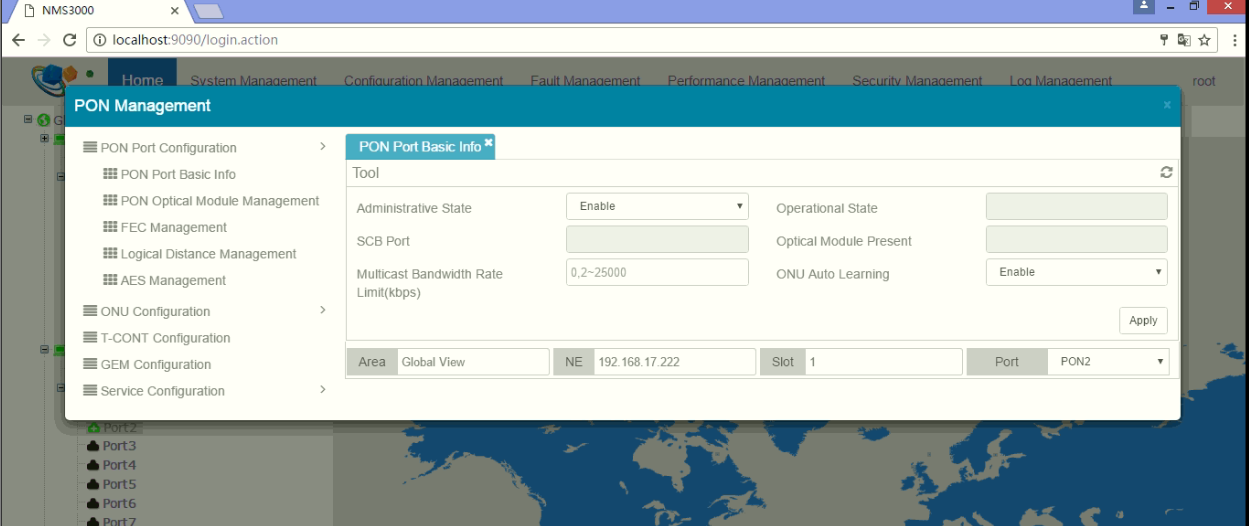

OLT NMS software Detail
