Present Network Situation Analysis

As relevant experts in the industry put forward the 5G front-haul semi-active solution (Open WDM), Hymo actively followed up and quickly launched own semi-active solution based on the current mainstream brand platform.

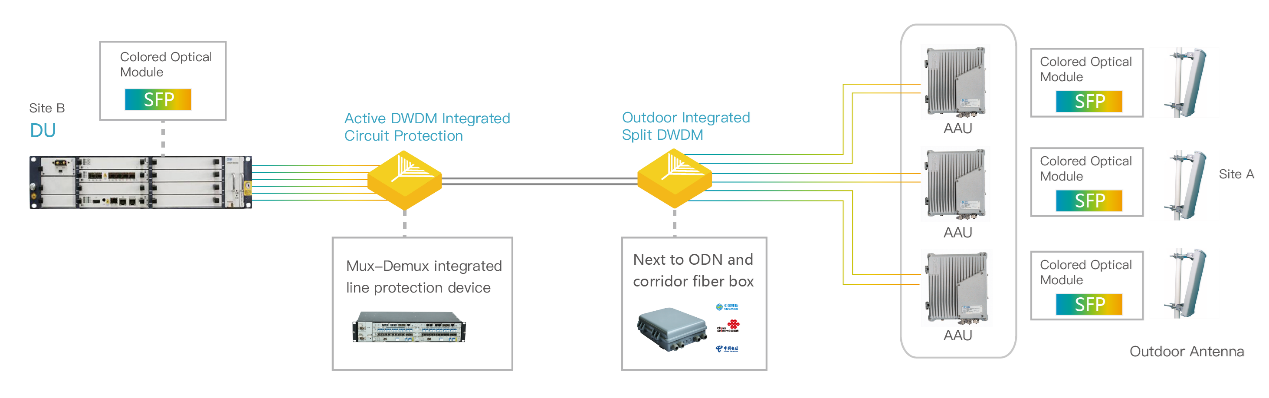

The semi-active wavelength division multiplexing scheme selects an asymmetrical design. The AAU side as far end uses multiple forms of passive devices , and the central office DU uses a high-capacity, multi-function active device. It is suitable for star or chain network topology. The solution also supports the mainstream 4G front-haul optical fiber, provides 2G/4G/5G service hybrid transmission, and offers the unified front-haul for 2G/4G/5G network. The semi-active solution for central office integrates a demultiplexer and an optical switch to support channel level optical power monitoring and line protection feature. The solution integrates with network management system offering remote monitoring and operation for passive modules and network topology. The mobile-APP is introduced to facilitate network operation and maintenance as well.

The semi-active WDM solution can meet the general requirements of low latency, low cost, multiple scenarios, monitoring, protection, management, and reduce requirements of hardwares for 5G front-haul networking, and offers higher cost effective performance.
