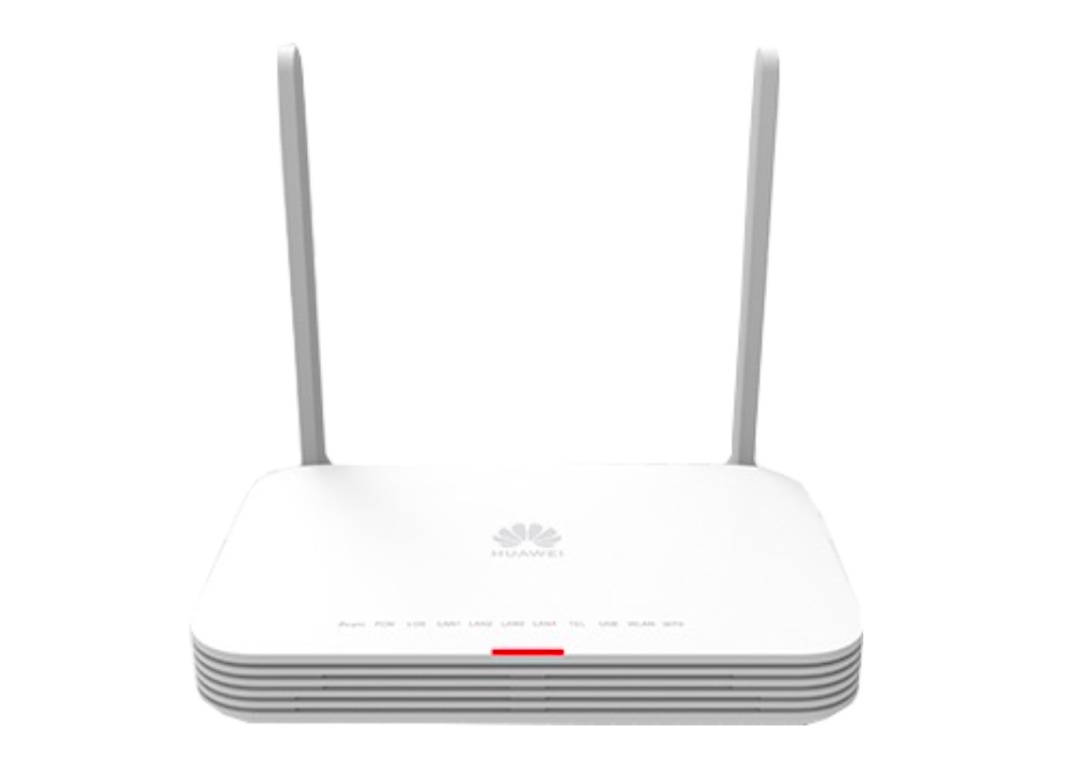

Huawei OptiXstar EG8145X6

Huawei OptiXstar EG8145X6 is an intelligent Wi-Fi 6 routing-type Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users. With high forwarding performance — ensuring an exceptional experience for voice, data, and High Definition (HD) video services — as well as future-oriented service support capabilities and visualized network management, OptiXstar EG8145X6 helps enterprises construct powerful all-optical access solutions.

The device features four GE ports, one POTS port, and one USB port, and 2.4G and 5G Wi-Fi connectivity.

• Home Network Features

Visualized home network management.
          User-defined bandwidth allocation.
Wi-Fi optimization and roaming.
Wireless Operations and Maintenance (O&M).

          Intelligent identification and anti-interference.

• Smart Services

Wi-Fi shutdown scheduling.
Smart Wi-Fi sharing: Portal/802.1X authentication and SoftGRE-based sharing.

• Smart O&M

 IPTV video quality diagnosis.

eMDI.
Rogue ONT detection and self-regulation.
Call emulation, circuit test, and loop-line test.
PPPoE/DHCP simulation testing.
WLAN emulation.

• Specifications

Parameters	Huawei OptiXstar EG8145X6
Dimensions (H x W x D)	35 x 195 x 125 mm (without external antenna and pads)
Weight (Without Power Adapter)	Approximately 372 g
Operating Temperature	0–40°C
Operating Humidity	5–95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1.5 A
UNI	4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G Wi-Fi 6
NNI	GPON
Maximum Power Consumption*	18 W
Antenna	External antenna
Installation Mode	Desktop
GPON Port	• Class B+ • Receiver sensitivity: –27 dBm to –29 dB • Overload optical power: –8 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength Blocking Filter (WBF) of G.984.5 • Flexible mapping between the GEM port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA • Type B (single-homing and dual-homing)
Ethernet Electrical Port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto port speeds (10/100/1000 Mbit/s)
POTS Port	• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)
WLAN	• IEEE 802.11 b/g/n/ax (2.4G) • IEEE 802.11 a/n/ac/ax (5G) • 2 x 2 MIMO (2.4G) • 2 x 2 MIMO (5G) • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • 2.4G and 5G concurrency • Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G) • Beamforming • Band steering • DL OFDMA • DL MU-MIMO • 1024 QAM • 160 MHz frequency bandwidth • WPA3
USB Port	• USB 2.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA function
Power Saving	COC V7
