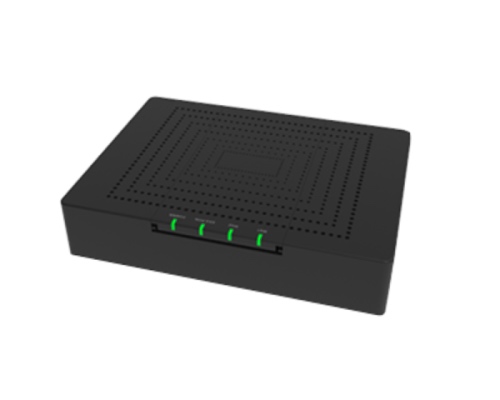

GPON SFU 4GE+PSE
GPON SFU OP154-P, 4GE+PSE ,is one of the ideal solutions for FTTH home gateway application. It can provide users with broadband Internet access capability, high quality voice & video services.
|
GPON uplink |
|
|
Interface |
1x SC/APC connector, single mode fiber Activation with automatically discovered SN and password |
|
Standard |
Compliant with ITU G.984.2 Class B+ Compliant with ITU G.984.5 Compliant with FDA 21 CFR 1040.10 and 1040.11 Compliant with laser safety standard IEC-60825 Class I Compliant with SFF-8472 |
|
Transmitter |
Support 1244.16Mbps upstream bandwidth DFB transmitter working in 1310nm, with >10dB Extinction Ratio Mean launch power in 0.5~5dBm range Turn on/off time at burst mode < 12.8ns |
|
Receiver |
Support 2488.32Mbps downstream bandwidth |
|
|
APD receiver working in 1490nm, with -8 ~ -28dBm working mode Isolation to 1310nm > 47dB Isolation to (1440~1450nm), (1530~1540nm) > 25dB Isolation to (1400~1440nm), (1540~1625nm) > 40dB |
|
TC Layer |
Support type 1~5 TCONT defined in G.984.3 Support 32 TCONT Support 32 GEMPORT Support flexible mapping between TCONT & GEMPORT |
|
GEPON uplink |
|
|
Interface |
1x SC/UPC connector, single mode fiber |
|
Standard |
Compliant with IEEE 802.3ah Compliant with FDA 21 CFR 1040.10 and 1040.11 Compliant with laser safety standard IEC-60825 Class I Compliant with SFF-8472 |
|
Transmitter |
FP laser working in 1310nm, with >9dB extinction ratio Mean launch power in 0~4dBm Turn on/off time at burst mode < 30ns |
|
Receiver |
PIN receiver working in 1490nm, with -3~-27dBm working range Isolation to 1310nm > 28dB Isolation to 1550nm > 35dB |
|
Bandwidth |
1.25Gbps in both direction |
|
LLID |
Support 8 LLID |
|
Ethernet LAN |
|
|
Interface |
4x RJ45 connector |
|
Standard |
Compliant with IEEE 802.3, 802.3u, 802.3ab Compliant with IEEE 802.3az, Green Ethernet |
|
Link |
Support Half-duplex & full-duplex operation Support 10/100/1000Mbps auto-negotiation Support MDI/MDIX auto detection |
|
|
|
|
Power Solution |
|
|
Type |
Wall adaptor, UPS |
|
Wall adaptor |
220VAC in, 50Hz 54VDC out, 1.5A max A standard barrel connector |
|
UPS |
2x4 Connector, 54V, 1.5A max 4 alarm inputs |
|
PSE |
80W Total power budget Support IEEE 802.3at PSE standard |
|
|
Support CISCO PD detection Max 30W output for each port |
|
|
|
|
Compliance |
|
|
Regulatory |
CE, ETL, FCC compliant |
|
EMC/EMI |
Compliant with EN 55022, class B Compliant with EN 300 386 Compliant with EN 61000-4-1~5 |
|
Safety |
Compliant with IP20 mechanical design Support fire resistance material, compliant with UL 94-V1, V0 is optional Compliant with IEC 60950-1 |
|
ENV kindness |
Compliant with RoHS standard Compliant with WEEE standard Compliant with energy efficiency level V Compliant with CoC V4 |
