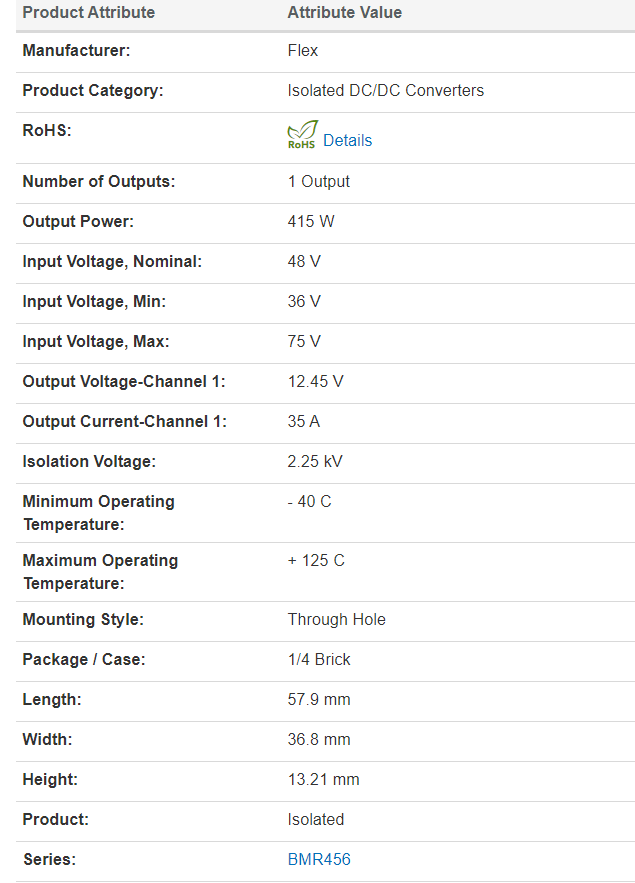

Isolated DC/DC Converters 415W 36-75Vin 12.45V BP PMBus HDR DROOPLD

Key Features

• Advanced Bus Converter Industry standard Quarter-brick with digital PMBus interface 57.9 x 36.8 x 11.3 mm (2.28 x 1.45 x 0.445 in.)
• Optional industry standard 5-pins for intermediate bus architectures
• Industry-leading Power Density for Telecom and Datacom 127-141W / sq. in
• Ericsson DC/DC Energy Optimizer built-in
• High efficiency, typ. 96.4% at half load, 12 Vout
• Fully regulated Advanced Bus Converter from 36-75Vin
• 2250 Vdc input to output isolation
• Fast Feed forward regulation to manage line transients
• Optional baseplate for high temperature applications
• Droop Load Sharing option available
• Optional variant supporting output capacitance up to 15mF
• PMBus Revision 1.2 compliant
• 2.9 million hours MTBF
• ISO 9001/14001 certified supplier

Power Management

• Configurable soft start/stop
• Precision delay and ramp-up
• Output voltage margining
• Voltage/current/temperature monitoring
• Configurable output voltage
• Configurable fault response and other parameters
