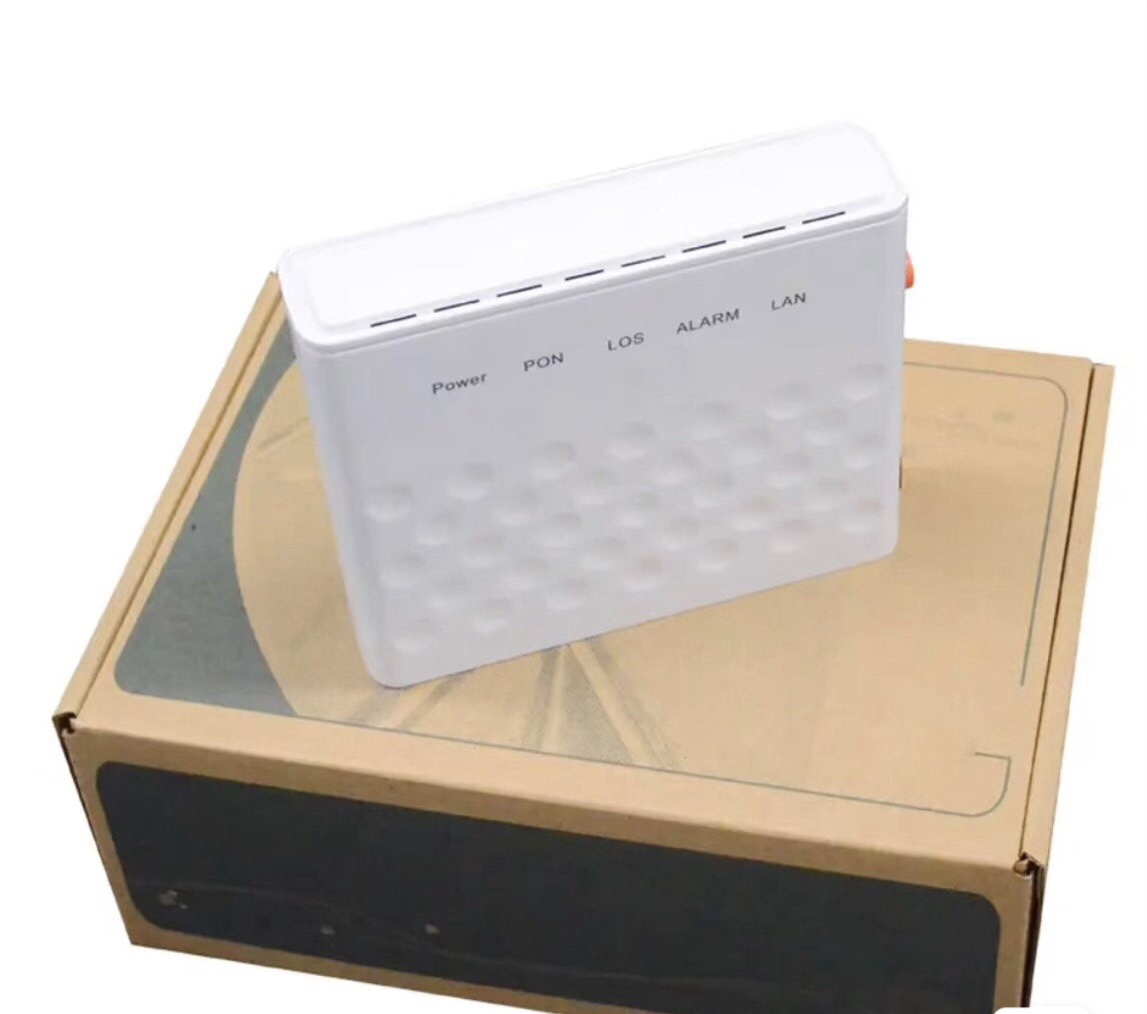

ZTE ZXHN F601

The ZXHN F601 is an ITU-T G.984.x and G.988 compliant GPON Optical Network Terminal (ONT) that provides one 10/100/1000 Mbps Ethernet port for FTTH scenarios and a GPON port in support of 2.488 Gbps downstream and 1.244 Gbps upstream. It provides a GE port to connect PCs or notebooks, and can work with an RG to provide service assurance for video and high-speed Internet access.

High Reliability

• The ZXHN F601 provides full-service access, high bandwidth, high performance, and high reliability to meet customers' evolving requirements.

Green Design

• Automatically switches to energy-saving mode according to idle status of the port.
• Complies with the CoC V7.0.
• Materials are RoHS-compliant.

Easy Operation and Maintenance

• Remote batch upgrade, fault diagnosis, port loopback, and link detection via the OMCI.
• Supports offline configuration, batch configuration, zero-touch field configuration, and automatic service provisioning.
