Gfast, which reuses existing copper resources to reach speeds comparable to FTTH (1,000 Mbit/s), is well-suited to brownfield areas. Featuring faster access, faster deployment, and faster return on investment, Gfast is attracting increasing industry attention.

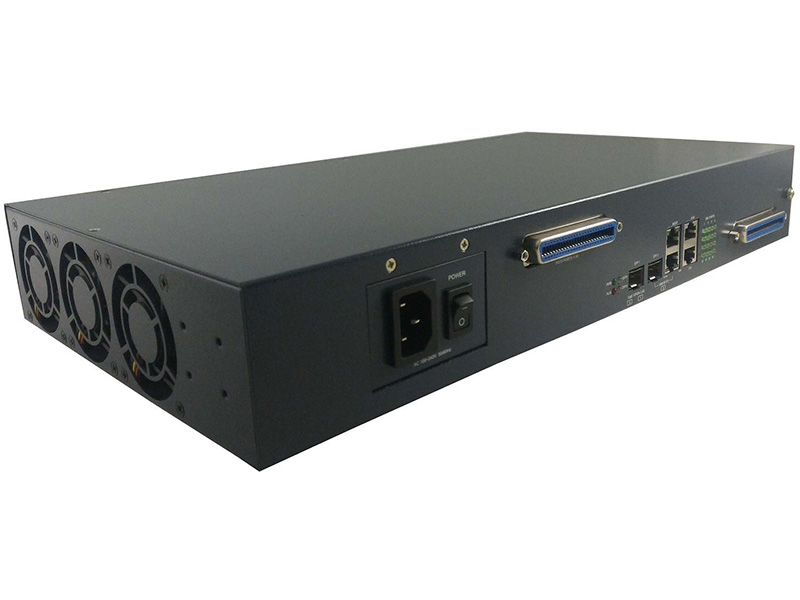

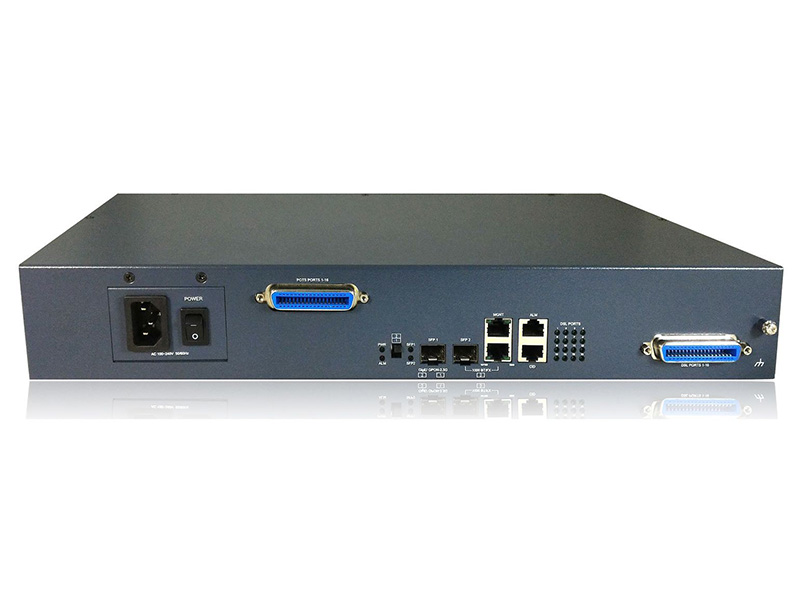

24/16 -port Gfast DPU with POTS splitter built-in / coaxial interface / without POTS which accepts AC90~264V local power.
The service sets for 3024 are IPTV, HSIA, and cVoIP. Together with advanced Ethernet OAM, it also targets for business services for copper wired Multi-tenant Units.
|
System Features |
Protocols Support |
|
l Gfast Ports 1. 24/16-port Gfastsubscriber interface Comply withITU-T G.9700/9701,212aProfiles 2. Total rate up to 1400 Mbps, aggregate the downstream and upstream rate 3. Support resynchronization 4. Support RFI configuration 5. Support G.fast profile setup 6. 24/16-port vectoring(crosstalk cancellation) with linear precoding 7. Up to 96-port SLV/MOV 8. ProgrammableTime-Division Duplexing,to accommodate different asymmetry ratios of downstream/upstream 9. Full start up sequence takes less than 20sec, and the fast retrain time, including 16 ports vectoring, is under 2sec. 10. Tolerant of inside wire impairments and changing noise conditions 11. Support Fast On-Line Reconfiguration (SRA, FRA, TIGA, RPA and bit-swapping) to cope with Channel l Bridging Port 1. Untagged/Tagged/TLS port 2. VLAN Ingress Filter Check 3. Port-based VLAN 4. Protocol-based VLAN 5. Priority-based VLAN 6. S-tag/C-tag Priority Mapping 7. VLAN Translation l VLAN 1. Single or Double tag support 2. N:1 /1:1 / TLS VLAN l Forwarding Data Base 1. 4K entries of MAC address 2. Dynamic/Static FDB 3. MAC learning limitation per port l Multicast 1. IGMP v1, v2, V3 2. IGMP proxy 3. Multicast VLAN mapping ü Independent VLAN multicast (IVM). l QoS: n Policer: - Broadcast and Unknown unicast flooding rate limit - VLAN+802.1p Priority rate limit n Scheduler: - SP - Strict priority - WFQ – Weighted Fair Queue - WRR – Weighted Round Robin. - Shaping:CIR, CIR/EIR l Access Control List According to packet field * Source or destination MAC addresses * Source or destination IP addresses * VLAN ID * Ethernet type * Protocol number * TCP/UDP port To do:Deny, Allow, VLAN Priority, DSCP to 802.1p mapping, Policer to do rate limitation |
l IGMPv1, v2, v3 snooping and proxy l DHCP L2 Relay – TR101 Appendix B l IEEE 802.1X l STP(802.1D) / RSTP (802.1W) l SNTP Client v3 or later l SysLog Client l Comply TR-301 Model 1 |
|
Uplink ports |
|
|
l 10G SFP+ interface Software selectable: l 2*2.5G SFP interface l 1G + 2.5G SFP interface |
|
|
Management |
|
|
l Local RS-232 CLI and EthernetHTTP/HTTPS (v1.2) / SSH (v2.0)/ SNMP/TELNET management l Remote in-band Web/SNMP/TELNET management l NETCONF/YANG G.997.2 Data Model * l Firmware upgradeable l Support SNMP v1, v2. l Alarm Relay for 4 inputs |
|
|
Operating Requirements |
|
|
l Operating Temperature:Rackmount:0° to 65 °C(for IPF2-2450N is 0° to 55 °C) l Storage Temperature: -40c° to 80 °C l Operating Humidity: 5% to 95% RH non-condensing |
|
|
l Dimension and Weight |
|
|
l IPF2-2450A: * Dimension:440mmx 270mmx 66mm * Weight: 4.6kg l IPF2-2450N: * Dimension: 440mm x 270mm x 44mm * Weight: 3.8kg |
|
|
Selective Power Source |
|
|
l From DSL loop 36V~57V, (Reverse power) * l AC power mode: 90VAC ~ 264 VAC, 50-60 Hz, 12V output, 6A (local power) l Power Consumption: all 16-ports up needs 75Watts (25°C) l Power saving mode * |
|
|
Certifications |
|
|
l EMC 1.FCC Part 15 Class A 2.CE-EMC Class A l Safety 1.EN60950-1 2.ITU-T K.20 Surge and Lightning protection l UL certification*
|
